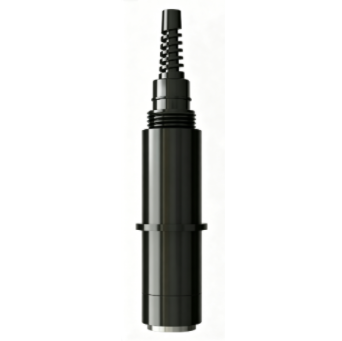

XDOA-100PDF Fluorescent DO Transmitter-Water Analyzers-Waydatech

Parameter	Specification
Power Supply	12 VDC
Dimensions	Diameter 30 mm × Length 174 mm
Weight	0.4 kg (including 5 m cable)
Material	Main body: PE Cable: PVC
Protection Rating	IP68
Measuring Range	0–20 mg/L, 0–200% Saturation
Display Accuracy (DO)	±2% F.S. of reading
Temperature Compensation	Automatic temperature compensation
Temperature Range	0–40 °C
Display Accuracy (Temperature)	±0.1 °C
Output	MODBUS RS485
Storage Temperature	-5 ~ 65 °C
Operating Ambient Temperature	0–40 °C
Pressure Range	< 0.2 MPa
Calibration	One-point calibration
Cable Length	Standard 5 m, customizable
Warranty	1 year (under normal use)
Membrane Cap	Non-replaceable membrane cap
