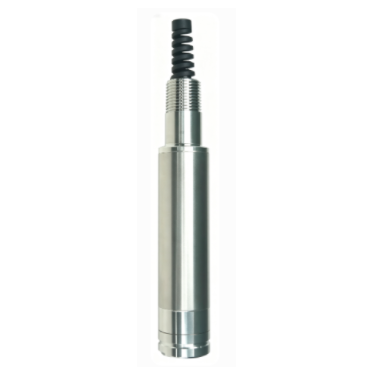

XDOA-100SDF Fluorescent DO Transmitter-Water Analyzers-Waydatech

Parameter	Specification
Power Supply	12 VDC
Dimensions	Diameter 30 mm × Length 120 mm
Weight	0.4 kg (including 5 m cable)
Material	Main body: 316L Stainless SteelCable: PVC
Protection Rating	IP68 / NEMA 6P
Measuring Range	0–20 mg/L (0–20 ppm)0–200% Saturation
Display Accuracy (DO)	±2% F.S. of reading
Temperature Compensation	Automatic temperature compensation
Temperature Range	0–50 °C
Display Accuracy (Temperature)	±0.5 °C
Output	MODBUS RS485
Storage Temperature	-15 ~ 65 °C
Operating Ambient Temperature	0–50 °C
Pressure Range	≤ 0.3 MPa
Calibration	One-point calibration
Cable Length	Standard 5 m, extendable up to 100 m
Warranty	3 years
Consumables	Replaceable membrane cap
