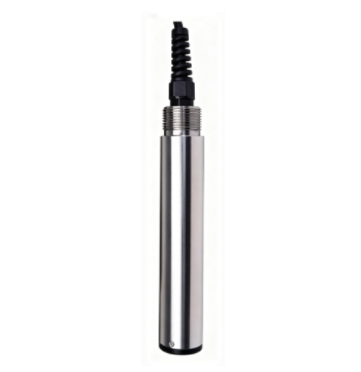

XTSA-100D Digital Turbidity Transmitter

Measurement Principle: 90° Scattering
Measuring Range: 0-1000 NTU; optional: 0-10 NTU / 0-4000 NTU
Housing Material: SS316L, POM
Output: RS485 Modbus-RTU

Contact

Product Overview

Parameter	Specification
Measuring Range	0-1000 NTU; optional: 0-10 NTU / 0-4000 NTU
Measurement Principle	90° Scattering
Light Source	850 nm
Housing Material	SS316L, POM
Thread Connection	NPT 3/4"
Standard Cable Length	5m
Wiring Type	Terminal Block
Dimensions	166 × Φ30 mm
Weight	Approx. 0.25 kg
Installation Method	Immersion / Submersible
Protection Rating	IP68
Power Supply	DC 12~24V
Communication Protocol	RS-485
