Water Analyzers

You Are Here：Home>Instrumentations>Water Analyzers

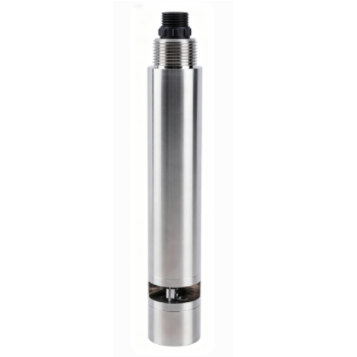

XCDA-100D Digital COD Transmitter

Measuring Range: 0 - 300 mg/L, 0 - 1500 mg/L
Principle: UV Absorption Method
Accuracy: ±10%
Housing Material: SS316L
Contact
Product Overview



ParameterSpecification (0-300 mg/L)Specification (0-1500 mg/L)
Measuring Range0 - 300 mg/L0 - 1500 mg/L
PrincipleUV Absorption MethodUV Absorption Method
Accuracy±10%±10%
Operating Temperature0 - 50 °C0 - 50 °C
Pressure Rating0 - 3 bar0 - 3 bar
Temperature SensorPt1000 / Pt100 / NTC10K / 2.252K / 22KTemperature optional
Response Time< 15 s (95% at 25 °C)< 15 s (95% at 25 °C)
Stabilization Time1 - 2 min1 - 2 min
Zero Drift< 0.5%< 0.5%
Average Power< 0.5 W< 0.5 W
Residual Current< 2% in air< 2% in air
Housing MaterialSS316LSS316L
Protection RatingIP68IP68
DimensionsΦ32 × 175 mmΦ32 × 175 mm
Thread ConnectionNPT 3/4" threadNPT 3/4" thread
Cleaning Brush Power< 5 W< 5 W
Cable Length10m (extendable)10m (extendable)
Connector TypeTerminal BlockTerminal Block


Prev Product：XRCA-100FS Chlorine Flow Slot

Next Product：XTSA-100D Digital Turbidity Transmitter
