Flow Meters

You Are Here：Home>Instrumentations>Flow Meters

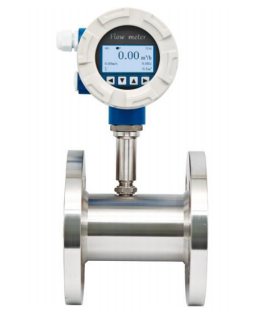

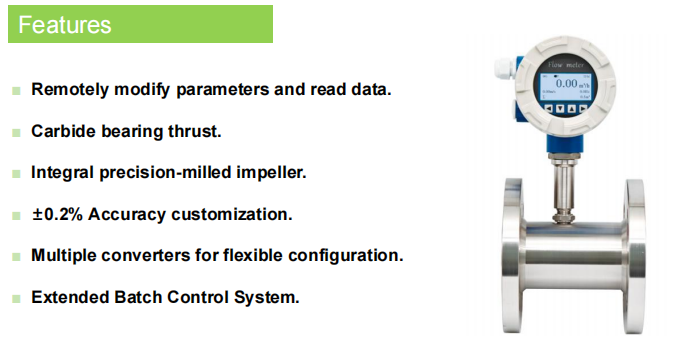

XTF-1000 Series Turbine Flow Meter

Nominal Diameter: DN4mm ~ DN300mm
Accuracy: ±1.5%, ±1.0%, ±0.5% (customized), ±0.2% (customized)
Nominal Pressure: 1.6 MPa, 2.5 MPa, 4.0 MPa, 6.3 MPa
Medium Temperature: -20°C ~ 65°C
Power Supply: 3.6V Lithium Battery, 12 VDC, 24 VDC
Output Signal: Pulse Output, 4-20 mA Output, RS485 Communication, HART Protocol
Body Material: 304 Stainless Steel, 316 Stainless Steel (customized)
