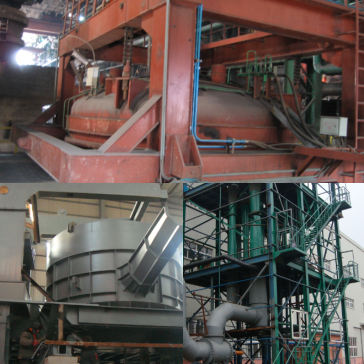

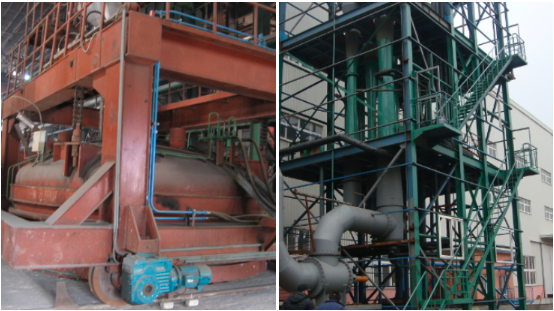

Anhui 60t 20t Special Steel Project

date：2026-06-04 views：13

HX-20t Electric Arc Furnace

No.	Item	Value	Unit
1	Rated Capacity	t	15
2	Average Capacity	t	20
3	Maximum Capacity	t	23
4	Rated Transformer Capacity	kVA	8000
5	Primary Voltage of Transformer	kV	35
6	Secondary Voltage of Transformer	V	260~139
7	Rated Secondary Current of Transformer	A	17765
8	Electrode Diameter	mm	350
9	Pitch Circle Diameter of Electrodes	mm	Φ1000
10	Max Electrode Lifting Speed	m/min	6
11	Max Electrode Lifting Stroke	mm	2400
12	Inner Diameter of Furnace Shell	mm	Φ3800
13	Cooling Water Consumption	m³/h	120
14	Tapping Tilting Angle	°	Normal:42°, Max:45°
15	Slag-off Tilting Angle	°	Normal:12°, Max:15°
16	Furnace Roof Lifting Height	mm	400
17	Furnace Roof Tilting Angle	°	84
18	Working Pressure of Hydraulic System	MPa	8.0

60‑Ton Vacuum Degassing Furnace

No.	Item	Value	Unit
1	Working Steam Pressure	0.8	MPa(G)
2	Working Vacuum Degree	67	Pa
3	Ultimate Vacuum Degree	20	Pa
4	Pumping Capacity@67Pa@8.0kPa	3002200	kg/hkg/h
5	Cooling Water Temperature	≤35	℃
6	Max Steam Consumption	11200	kg/h
7	Cooling Water Consumption	560	m³/h
8	Water Consumption of Water-cooled Dust Collector	40	m³/h
