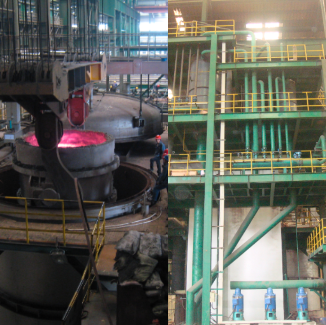

100‑Ton Vacuum Degassing Furnace

VD-100t Vacuum Degasser

Main Technical Parameters & Requirements

Vacuum Pump Pumping Capacity

67 Pa: 400 kg/h

8 kPa: 3600 kg/h

Working Vacuum: 67 Pa

Ultimate Vacuum: 20 Pa

Working Steam Pressure: 0.8 MPa

Working Steam Temperature: 175~200 ℃

Cooling Water Temperature: ≤35 ℃

Cooling Water Pressure: 0.25 MPa (at water distributor on 12m platform)

No.	Medium	Pressure(MPaG)	Max Flow	Application
1	Compressed Air	0.4~0.6	5 Nm³/h	Pneumatic valves & cylinders
2	Working Steam	0.8 MPa (175~200℃)	12.0 t/h	Vacuum pumping source
3	Equipment Cooling Water (Clean Circulating Water)SupplyReturn	0.25 MPa (35℃)0.25 MPa	100 m³/h120 m³/h	Gas cooling & dust collectorWater collecting tank
4	Condenser Cooling Water (Raw Water, Suspended Solids ≤50mg/L)SupplyDrain	0.3 MPa (35℃)0.3 MPa	680 m³/h680 m³/h	Condenser (aux condenser closed, pressure measured at 12m platform distributor)Drain pump
