Application

VD ladle refining furnace is applied for vacuum degassing of molten steel, fine adjustment of alloy composition and argon stirring under vacuum condition.VOD ladle refining furnace realizes oxygen blowing, decarburization, vacuum degassing and alloy trimming under vacuum, which is mainly used for refining ultra-low carbon stainless steel, electrical pure iron and other special steels.

Main Structural Layout

VD/VOD ladle refining furnaces are available in single-station or double-station layout. The vacuum tank can be installed in overhead type or pit-mounted type, as well as car-mounted type; the vacuum lid can adopt swing-open movement or trolley transfer removal mode.

Equipment Composition

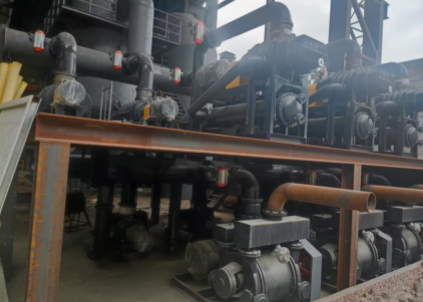

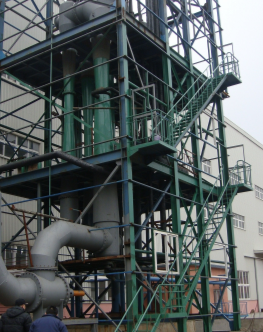

VD/VOD unit consists of vacuum tank, vacuum lid lifting mechanism, steel ladle, oxygen lance assembly, vacuum feeding device, temperature measurement & sampling and inspection system, oxygen supply system, argon system, cooling water system and vacuum pumping system.

Rated Capacity (t)	Ladle Top Inner Diameter (mm)	Vacuum Pump Suction Capacity (Kg/t)	Operating Vacuum Degree (Pa)	Vacuum Vessel Dimension (mm)
15	2200	150	67	Φ3800×4100
25	2600	180	—	Φ4000×4600
30	2700	200	—	Φ4200×5175
40	2900	250	—	Φ4800×5300
50	3000	280	—	Φ5300×5400
60	3150	360	—	Φ5300×5500
70	3200	380	—	Φ5400×5600
80	3300	380	—	Φ5500×5700
90	3400	380	—	Φ5600×5800
100	3500	400	—	Φ5600×5800
120	3600	420	—	Φ6200×6400
