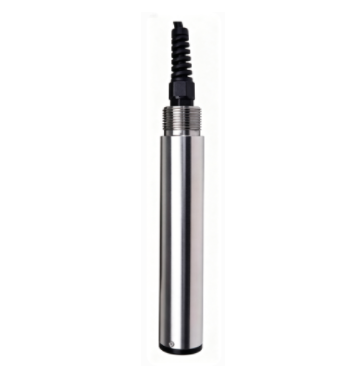

XWOA-100D Digital Oil In Water Transmitter

Measuring Range: 0-50 mg/L, 0-100 mg/L, 0-200 mg/L
Measurement Principle: 90° Light Scattering
Accuracy: ±3%
Housing Material: SS316L, POM
Output: RS485 Modbus-RTU

Contact

Product Overview

Parameter	Specification
Version	Standard Version
Measuring Range	0-50 mg/L, 0-100 mg/L, 0-200 mg/L
Measurement Principle	90° Light Scattering
Accuracy	±3%
Housing Material	SS316L, POM
Thread Connection	NPT 3/4"
Standard Cable Length	5m
Wiring Type	Terminal Block
Dimensions	166 × Φ30 mm
Weight	Approx. 0.25 kg
Installation Method	Immersion / Submersible
Protection Rating	IP68
Power Supply	DC 12~24V
Communication Protocol	RS-485
