Item		Performance & Parameter
Convertor	Principle	Transit-time ultrasonic flowmeter
	Accuracy	±1%

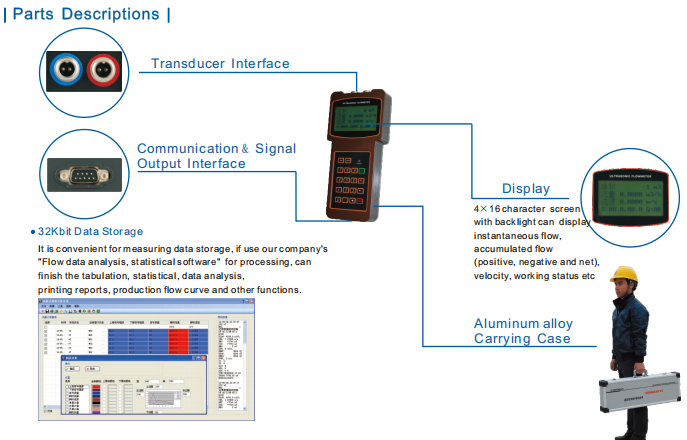

	Display	4×16 character LCD with backlight, support the language of Chinese, English and Italy
	Data Interface	Insulate Rs232 serial interface, upgrade the flowmeter software by computer
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
	Pipe Diameter	5~6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave,such as Water (hot water, chilled water, city water, sea water, waste water, etc.);Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);Chemicals (alcohol, etc.); Plant effluent; Beverage;Ultra-pure liquids, etc.
	Temperature	-30~160℃
	Turbidity	No more than 10000ppm and less bubble
	Flowrate	0~±10m/s
Working Environment	Temperature	Convertor: -20~60℃; Flow Transducer: -30~160℃
Working Environment	Humidity	Convertor: 85%RH; Flow Transducer: Ip67
Power Supply		3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
Power Consumption		1.5W
Case Material		ABS
Dimension		2009332MM(Convertor)
